Article Updated: March 10, 2026
FW: v1.0.0_20260220
Available BioStar 2 Version: v2.9.12
Available BioStar X Version: v1.0.2 (scheduled for release in May 2026)
Available BioStar 2 Device SDK Version: v2.9.12
Available Suprema G-SDK Version: v1.9.0

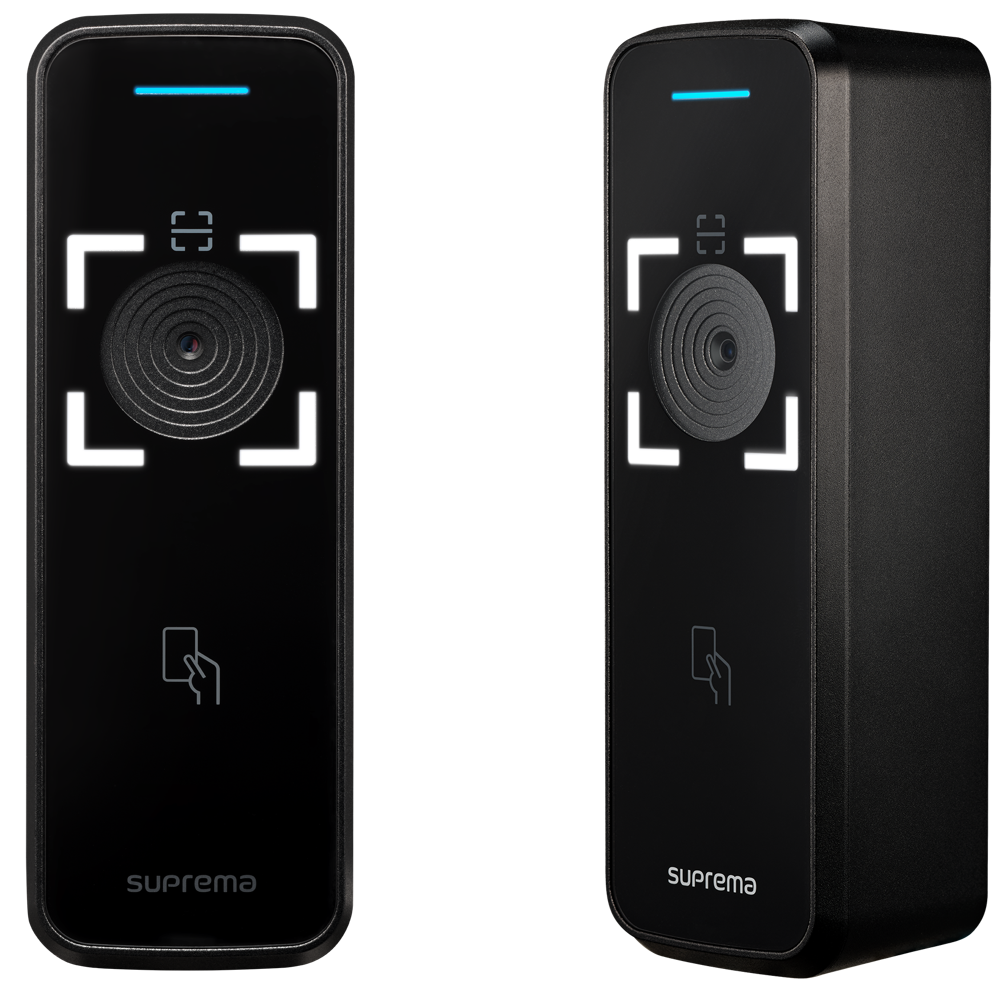

XPass Q2 is a high-performance QR and RFID reader designed for fast, seamless access in high-traffic environments.
[XPass Q2, a new intelligent QR/RFID reader]
Why XPass Q2?
1) Optimized for high-traffic access
- Fast QR/barcode scanning and responsive credential reading keep entry lines moving smoothly.
2) Multi-technology credential support
- Supports QR/barcodes, RFID cards, and mobile credentials (Suprema Mobile Access; NFC, BLE) in a single device.
3) Reliable performance in challenging environments
- Advanced imaging and processing ensure accurate scans even under varying lighting conditions.
4) Compact yet durable design
- Slim form factor with IP65 protection allows installation in both indoor and outdoor entrances.
5) Easy system integration
- Supports OSDP, Wiegand for seamless integration with existing access control systems.
Overview
XPass Q2 is an intelligent QR and RFID reader designed for fast and reliable access in high-traffic environments. Equipped with a dedicated QR module, it supports a wide range of QR codes and barcodes, along with RFID cards and Suprema Mobile Access credentials in a single device.
Powered by a 1.0 GHz processor, XPass Q2 delivers quick and accurate credential processing while maintaining stable operation. With IP65-rated durability and support for Ethernet, OSDP V2, and Wiegand, it enables flexible deployment and seamless integration with existing access control systems.
Key Features
Type | Features | Release Status |
| User Credential | BioStar 2 QR & BioStar X QR | Released (Default) |
| 32 ASCII character QR | Released (Default) | |
| Data Matrix, QR Code, Aztec, Micro QR Code, PDF417, Code39, Code128, UPC-A, UPC-E, EAN-8, EAN-13 | Released with Device License | |
| RFID * Details at "Supported Model List". | Released | |
| Suprema Mobile Access | Released | |
| Max. Credential (1:N) | Card: 200,000 | Released |
| Max. Credential (1:1) | Card: 200,000 | Released |
| PoE (Power Over Ethernet) - IEEE802.3af compliant | Not Supported | - |
| Wiegand | 1ch input / 1ch output (selectable) | Released |
| RS-485 Communication Protocol | OSDP V2 compliant | Released |
| IP (International Protection) Rate | IP65 | Released |
Supported Model List
XPQ2-DB (Single Model)
| XPQ2-DB | |
| RF Option | EM MIFARE MIFARE Plus DESFire DESFire EV1/ EV2 / EV3* FeliCa |
| PoE | N/A |
* DESFire EV2/EV3 cards are backward compatible with DESFire EV1 cards, supporting CSN and smartcard features, including those of the DESFire EV1 card.
What's New About XPass Q2?
1. Default QR Support without License
XPass Q2 supports reading QR codes up to 32 ASCII characters by default, without requiring additional device license. This enables immediate deployment for basic QR-based access using both BioStar 2/X encrypted QR and third-party issued QR codes.
For environments using barcode symbologies, an optional device license is required to unlock full barcode capabilities.
FAQ
Q1. Can we use PoE on XPass Q2?
A1. Unfortunately, PoE is not supported on XPass Q2. We have a single model for this product that does not support PoE.
Q2. Can we use HID Prox or iClass cards on XPass Q2?
A2. Unfortunately, HID and iClass cards are not supported on XPass Q2. We have a single model for this product that does not support HID Cards.
More Information
Suprema Official Website (XPass Q2 Page Link)
Suprema Docs - Device and Installation Guide (XPass Q2 Guide Link)
A&E (XPass Q2 A&E Link)
