What is a Blacklist?

A list of cards that are denied for authentication on the BioStar device. When a card is lost or stolen, misuse can be prevented by registering the ID of the card in the blacklist.


If you're trying to delete a CSN card refer to the following article


Why would you want to delete a blacklisted Access on Card?

If you have a Access on Card in BioStar 2, you can only delete the card after blocking it.

However in a rare case if you wanted to delete all the users from the database with Access on Cards and still wanted to use the Access on Card, you would have to delete the cards from the black list for the user to not be rejected.


In a future version of BioStar 2 you will be able to delete such Blacklisted cards within the UI, but for now, you can use the temporary solution below to delete the Blacklisted card.

Note: This solution only applies for Access on Cards. You can't use this method for Secure Credential or Wiegand cards.


How to delete all blacklisted Access on Card (BioStar 2.8+ but will work on older)


1. From version 2.8 onwards, Values within the t_usr and t_crd tables are encrypted, so can be a problem when trying to search values such as below.


2. A way around this will be to delete all blacklisted cards within the table. To accomplish this, connect to the database

* refer to the following article if you do not know how to access your Maria Database


3. Once connected to the database, run the below query:


use biostar2_ac;
set SQL_SAFE_UPDATES = False;
DELETE FROM T_BLKL;
UPDATE T_LSTSYNSTA SET BLKL = 0;

set SQL_SAFE_UPDATES = True;


4. Once complete, an output should prompt for how many lines were affected


5. If you now login to BioStar 2, all blacklisted cards should be removed!


How to delete a blacklisted Access on Card from the database (BioStar 2.3 ~)


1. You can check if your card is blacklisted by going to the Setting > Card > Blacklist Card menu

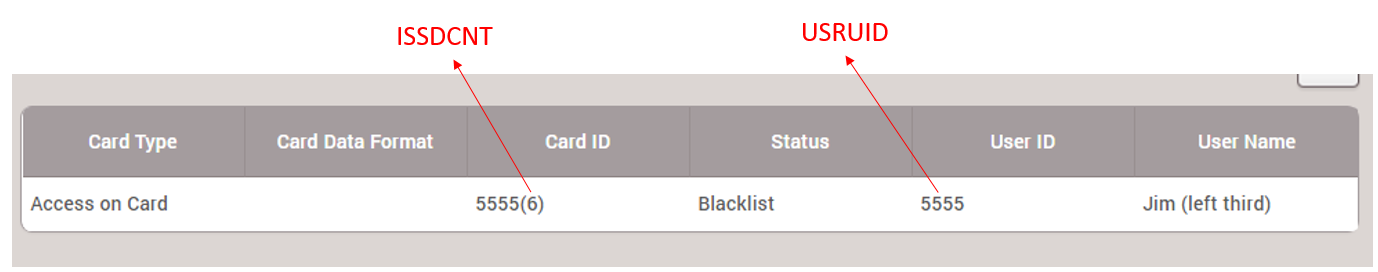

* Take note of the issue count (ISSDCNT) and user id (USRUID) as shown below


  • IF your blacklisted cards are shown as follows, please go to the bottom of this page, 'How to get DELUSRID'.



2. Access your BioStar 2 database

* refer to the following article if you do not know how to access your Maria Database


3.  Run the query below

select CRDUID
from T_USR, t_blkl
where t_usr.usruid = T_BLKL.usruid
and T_USR.DELUSRID='5555'
and t_blkl.ISSDCNT='6';


* enter your User ID in u.USRID = '5555'

* enter your issue count in = 6


Result should show a crduid


4. Run the following query to delete the card from the blacklist.


BEGIN;
DELETE
FROM T_BLKL
WHERE CRDUID = (SELECT CRDUID
FROM T_CRD
WHERE CRDUID= '90' ) ;
UPDATE T_LSTSYNSTA SET BLKL = 0;
COMMIT;


* Enter your CRDUID in CRDUID = '90'


If you get in log ERROR 1175 SQL SAFE MODE ON,


please use SQL Line before running the query :


SET SQL_SAFE_UPDATES = 0;


5. Check that the blacklisted card has been removed from the blacklist.


If you do not want to do this manual method for each user, you can customize the firmware of your device or BioStar 2 with a fee. In that case please enter a ticket through your distributor (local Suprema Partner).



How to get 'DELUSRID'


If you deleted the user already and set the AoC card to be blacklisted, then the user information is printed on the Blacklist Card page. However, if you already deleted the user, the user information will not be printed like the sample image below.


In this case, to figure out the 'DELUSRID' value in the query, you need to execute the query below.


SELECT DISTINCT DELUSRID FROM T_USR, T_BLKL WHERE T_USR.USRUID = T_BLKL.USRUID AND T_BLKL.ISSDCNT = '2';
