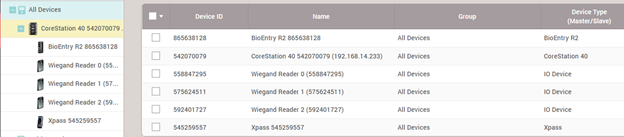

Below is a sample CS-40 2 setup with 2 slave devices and 3 Wiegand Readers to control 5 doors.

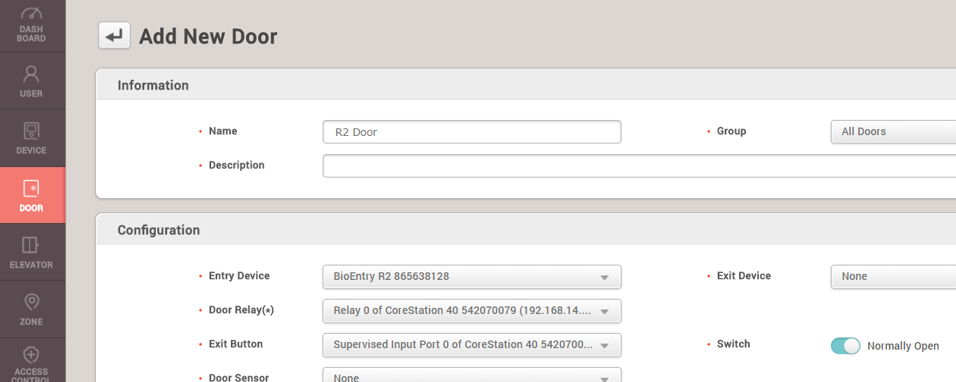

You can add each device as a separate door in the Door menu.
Configure each door with a specified relay and input as required.
For the Wiegand and R2 dummy readers, use the relay and input of the CS-40.
5 Door configuration with CS-40 complete.
