Article Updated: April 14, 2025
Firmware applied to: v1.0.0_20250218
Available BioStar 2: v2.9.9 or above
Available BioStar 2 Device SDK: v2.9.9 or above
Available Suprema G-SDK: v1.8.0 or above
CoreStation 20 (CS-20/CS-20P) is a 2-door access controller that supports up to 500,000 users and integrates with BioStar 2. PoE+ and SAM Slot for enhanced security are available exclusively on the CS-20P model, offering flexible installation and secure smart card authentication.

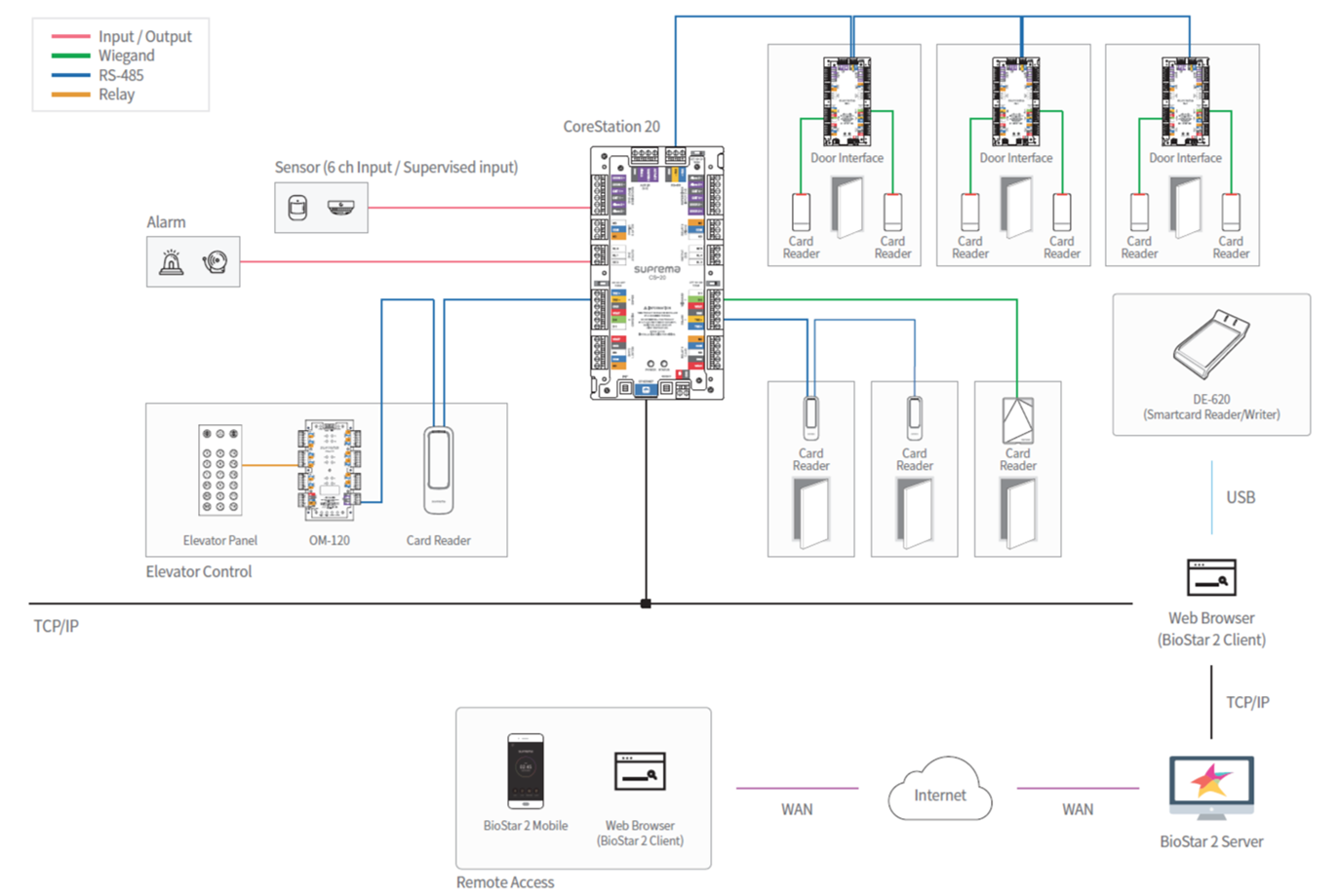

[CoreStation 20, a new 2-door access controller]
Why CoreStation 20?
Suprema's CoreStation 20 (CS-20) is a next-generation RFID-only access controller designed to deliver secure, scalable, and efficient access control solutions. Engineered specifically for RFID-based environments where biometric authentication is not required, the CS-20 supports a wide range of RF card types depending on the connected reader. Optimized PoE+ support and simplified configuration ensure easy installation and integration into existing infrastructure. The CS-20 is ideal for organizations seeking a high-performance, RFID-centric access control system.

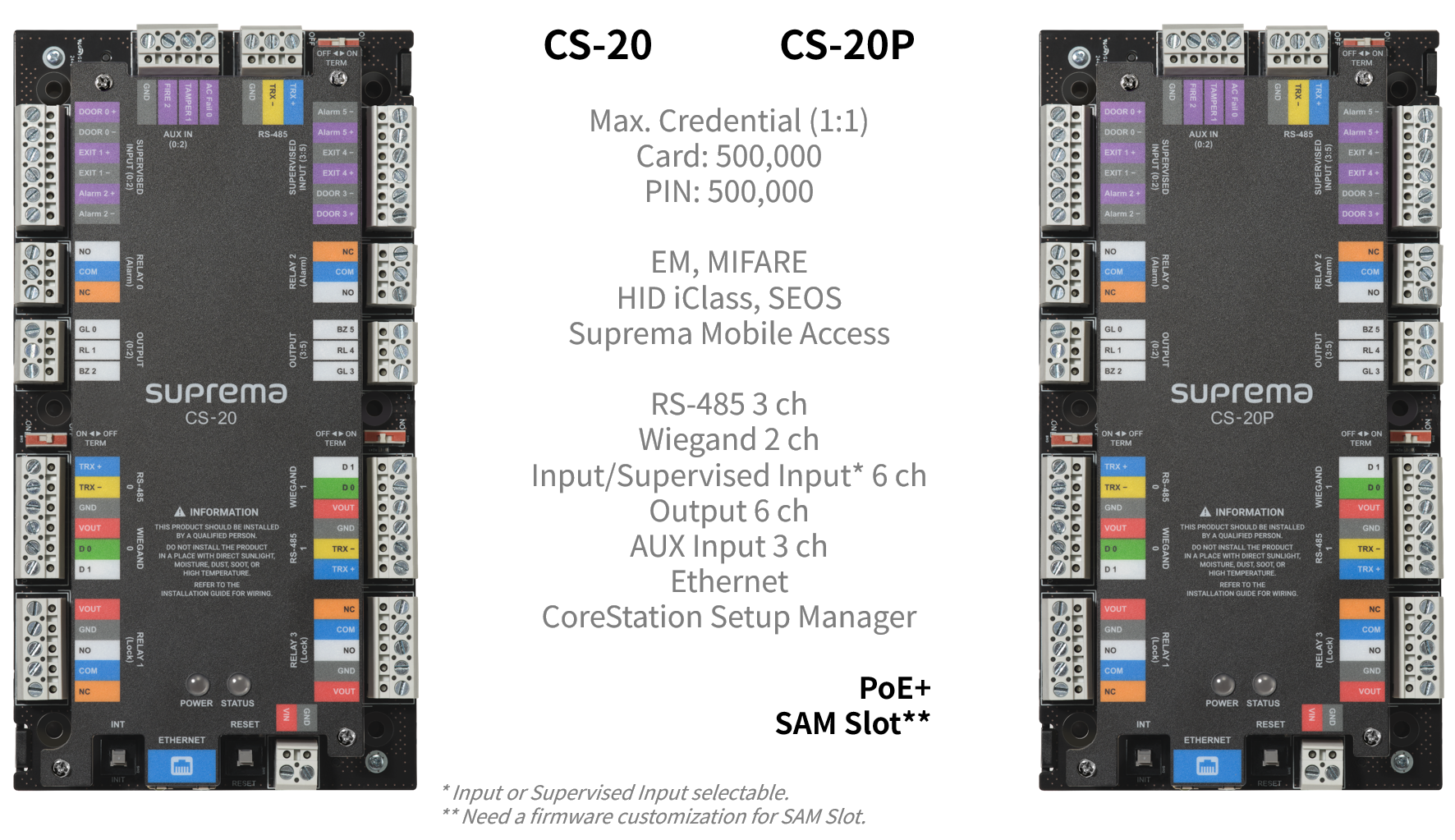

Key Features
Type | Features | Release Status |
Max. Credential (1:1) | Card: 500,000 PIN: 500,000 | Released |
User Credential | RFID Cards | Released |
RS-485 Slave Devices | Suprema Card Readers
| Released |
Suprema Peripherals
| Released | |
| 3rd party Devices | Not Released Yet (v1.0.1) | |
PoE+ (Power Over Ethernet)
| Supported with CS-20P only | Released |
| RS-485 | 3 ch OSDP V2 complaint | Released |
| Wiegand | 2 ch | Released |
| Input | 6 ch
| Released |
| Output | 6 ch | Released |
| Aux Input | 3 ch
| Released |
| SAM Slot | Supported with CS-20P only | Released
|
For more detailed specification, please visit CoreStation 20 A&E Specifications.
Supported Model List

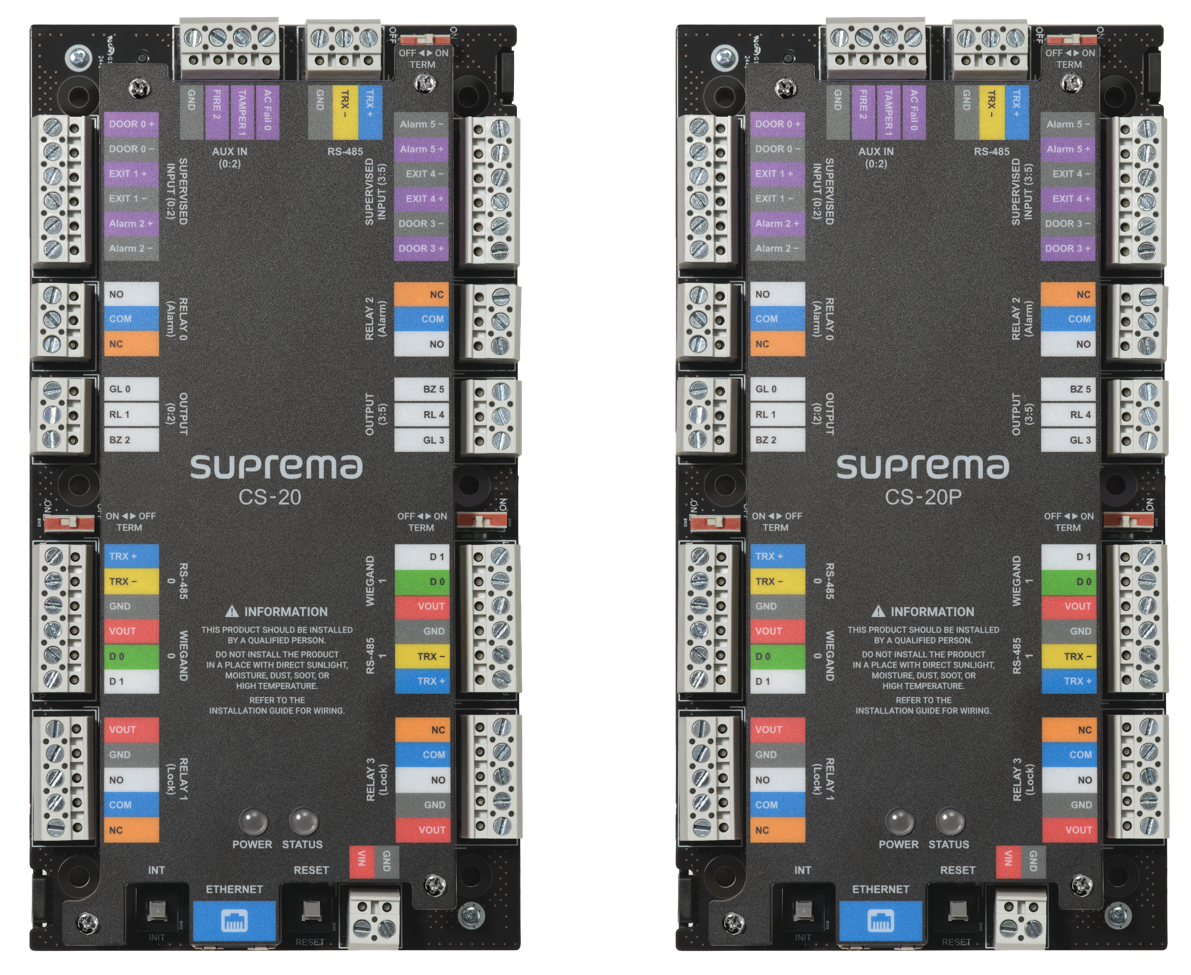

CS-20 and CS-20P
- Depending on the PoE+ support, the model type is divided.
What is New About CoreStation 20?
1. RFID Access Control Panel

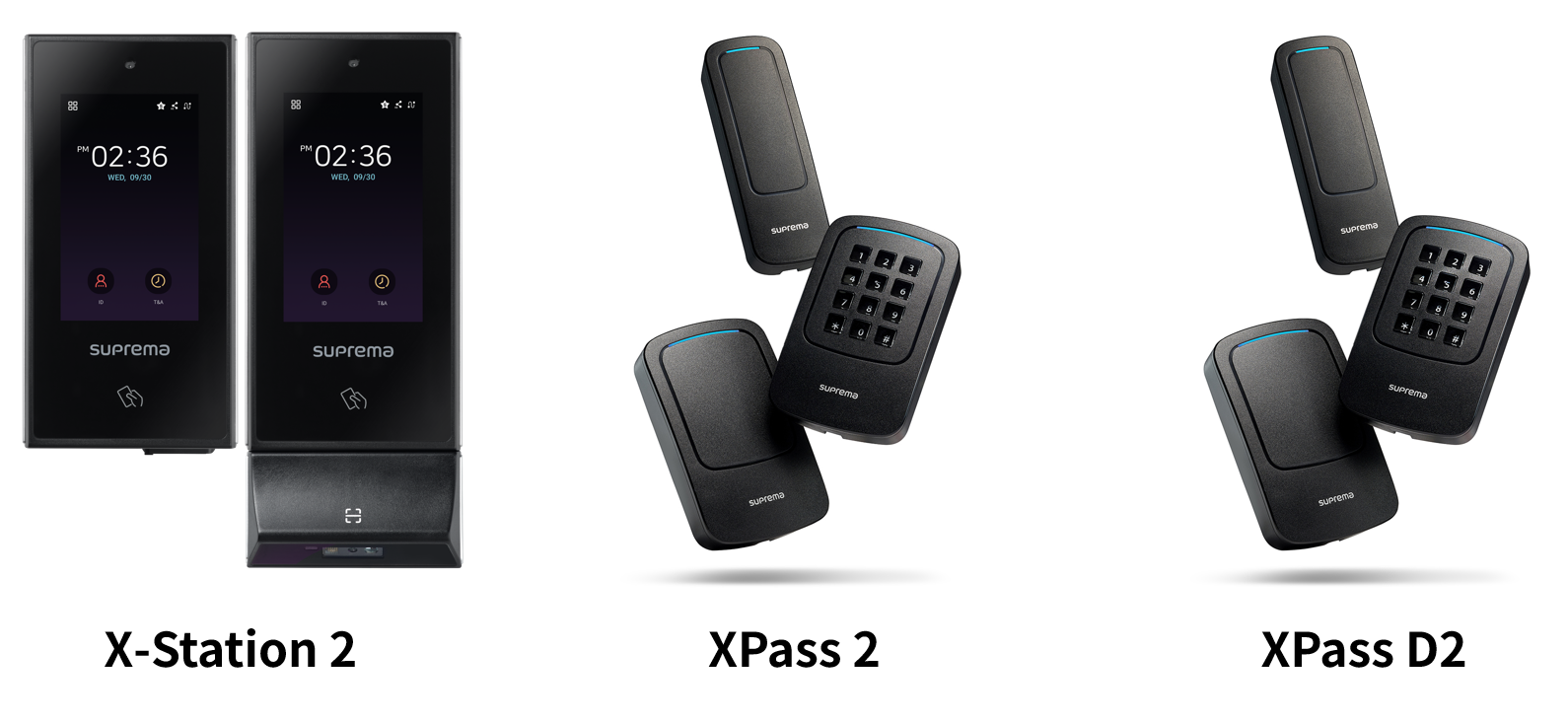

- Supported RS-485 Slave device list: X-Station 2 (non-fingerprint model only), XPass 2, XPass D2
2. Connect maximum 4 RS-485 Slave RFID readers at RS-485 Port 0 and RS-485 Port 1
- You can connect Max. 2 RS-485 Slave devices (RFID readers) per each RS-485 port.
- However, you CANNOT use the "RS-485 port" without the port number on the top for the RS-485 Slave RFID reader connection.
3. Enlarge your installation with Suprema's biometric readers via the Intelligent Slave feature.
- Suprema's biometric (fingerprint, face, or visual face) readers cannot be an RS-485 Slave device of CS-20.
- However, you can connect using Suprema biometric readers' Intelligent Slave feature (matching at readers).
- Relevant Article: [BioStar 2] Intelligent Slave Support, [BioStar 2] Firmware List of Supporting Intelligent Slave
4. Easier network configuration via CoreStation Setup Manager
- CS-20 also supports CoreStation Setup Manager.
- Relevant Article: [BioStar 2] CS-40 Setup Manager Release, Suprema CS-40 SETUP Manager
- The CoreStation Setup Manager is a web-based service that allows you to check the connection status of the CoreStation from anywhere after the wiring is completed. This feature can be used when your initial setup.
5. Expandable card compatibility with SAM Slot (CS-20P only; firmware customization required)
- Enhance your security authentication by secure smart card authentication through the SAM Slot.
- Firmware customization is required for further support. Please contact the Suprema Sales team (Contact Suprema Sales).
What is Different from CoreStation (CS-40)?
CS-40 supports biometric (fingerprint and face) matching. However, CS-20 focuses on RFID matching, which can reduce the cost and complexity. Also, CS-20 can offer the relay power from itself, so you can connect a maximum of 2 relays without installing a separate power resource.
