Prerequisits for Suprema Plugin
I. License
1. Software license
1) Genetec
- Security Center : 1ea
- SDK Connection : GSC-1SDK-SUPREMA-READ (One license supports 2 connection)
i) Config Tool login: 2ea
ii) Security desk login : 1ea
iii) Suprema extractor plugin: 1ea per Genetec Security Center Server
iv) Suprema device plugin: 1ea per Suprema device plugin
* One device plugin supports up to 4 cloud links (256 Suprema devices),
and you can add as many Suprema Device Plugin as you need
> Needs total 3 GSC-1SDK-SUPREMA-READ per Server
2) Suprema
- Plugin license: INT_GEN_GSC
1. Device license
1) Genetec
- GSC-Sy-X-1R(E) : 1ea per device assigned to door as reader
2) Suprema
- Only devices that it's ID is registered in Server license can be registered in Plugin
- Sku: Device model - GEN
II. Permission for SQL database
* To ensure proper operation of the Plugin (Device Plugin and Extractor DB),
please grant the SQL account the following permissions:
III. RIO protocol
* To ensure proper operation of the Plugin, please enable RIO protocol for Synergis Cloud Link or Softwire
Process

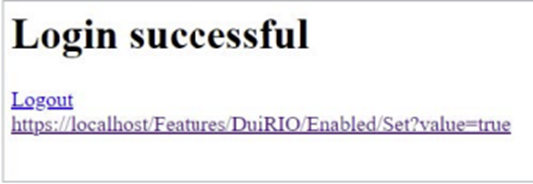

1. Enter the folowing URL into your browser
- https://[Unit IP]/Features/DuiRIO/Enabled/Set?value=true

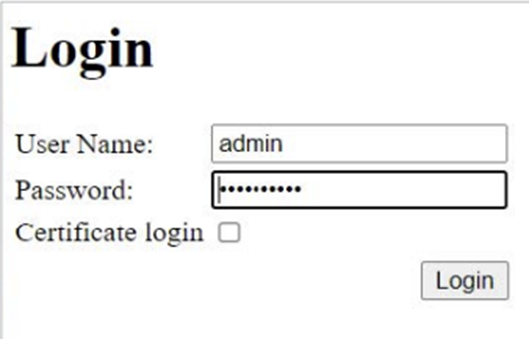

2. Login to Synergis Cloud Link or Softwire
3. Click a RUL http://[IPaddress]//Features/DuiRIO/Enabled/Ser?value=treu

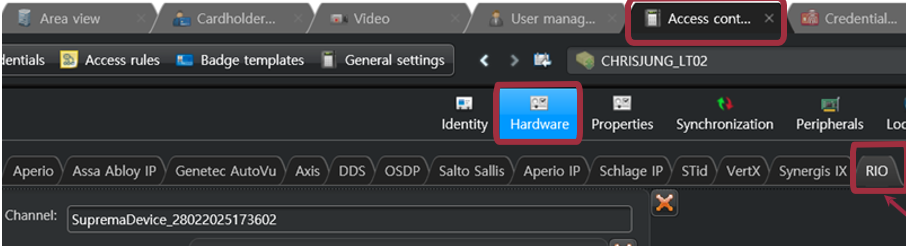

* Check point. : When the RIO protocol is enabled, the RIO tab becomes available on the Hardware page under
Config Tool > Access Control > Cloud Link.
V. Profile image quality setting
* If you'd like to extract face templates from cardholder profile images in GSC,
please adjust picture size to ensure picture quality

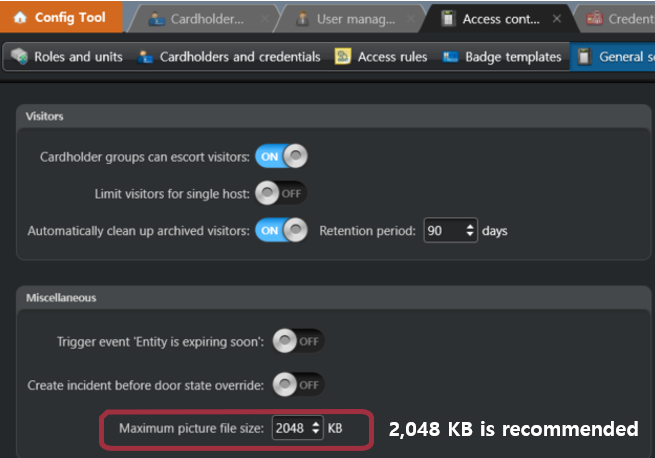

Path: Config Tool _ Access Control _ General settings
IV. Device setting
1) Removing all users and logs from devices
2) Factory reset devices
3) Set User ID type as Alphanumeric
* Default IP and PW for device admin
ID: su
PW: 1234
> You can change PW from Config Tool _ Suprema Plugin Configuration _ Superadmin Credential page
