Article Updated: May 04, 2026

FW: v1.0.0

Available BioStar 2 Version: v2.9.12

Available BioStar X Version: v1.0.2.159

Available BioStar 2 Device SDK Version: v2.9.12

Available Suprema G-SDK Version: v1.9.0

    BioStation 3 Max is Suprema's enterprise-grade AI-powered biometric terminal engineered for high-security facilities, large-scale deployments, and mission-critical access points.

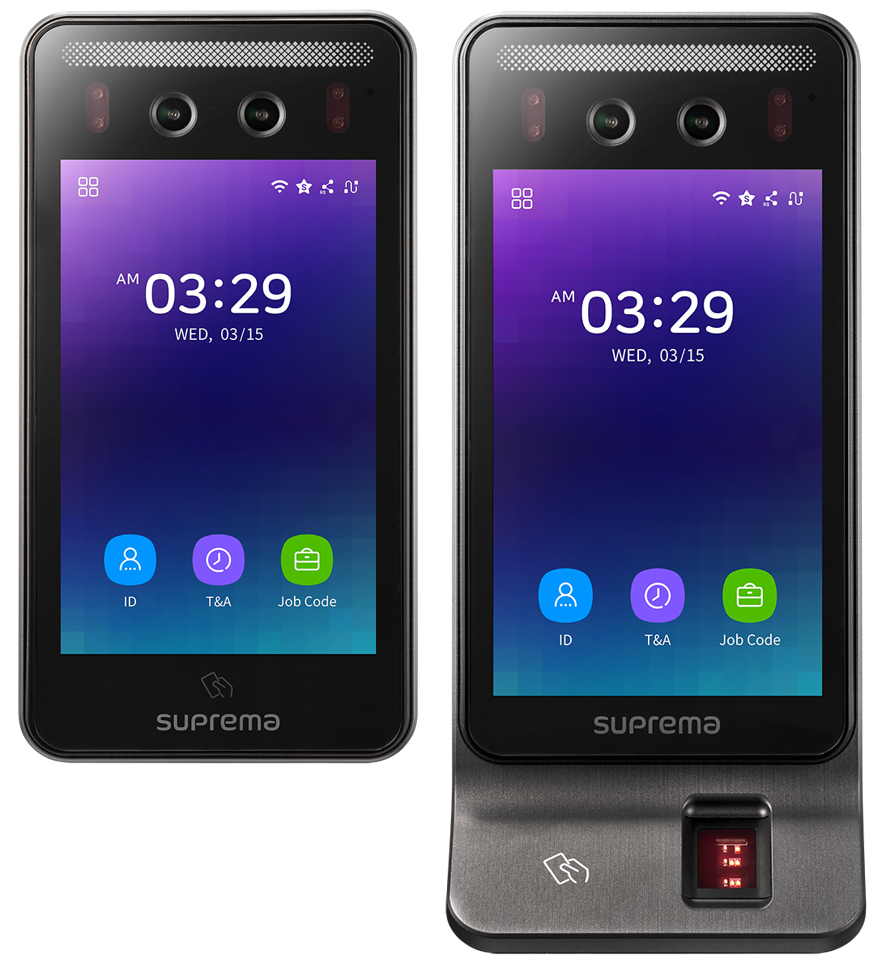

[BioStation 3 Max, a new AI-powered biometric terminal]

Why BioStation 3 Max?

1) NPU-powered AI for sub-0.2-second face matching

• A dedicated NPU-based AI engine delivers ultra-fast facial authentication with robust spoof detection, enabling always-on operation even in high-traffic environments.

2) All-in-one multi-credential support

• Supports face, fingerprint, RFID cards, mobile access (NFC/BLE), QR codes, and PIN—all in a single device, eliminating the need for multiple readers.

3) Built-in VoIP intercom

• Integrated VoIP intercom capability enables real-time communication between visitors and staff directly from the terminal, without additional hardware.

4) Premium design with enterprise-grade durability

• A slim 7-inch touchscreen form factor with IP65 and IK06 ratings ensures reliable operation in both premium lobbies and demanding front-of-house environments.

5) Secure by design

• Built on secure Linux architecture with military-grade encryption and Template on Mobile support, keeping biometric data protected at the point of capture and meeting international compliance standards (CE, FCC, KC, RoHS, UL, and more).

Overview

    BioStation 3 Max is Suprema's enterprise-grade biometric terminal engineered for high-security facilities, large-scale deployments, and mission-critical access points. It combines NPU-optimized AI facial authentication with comprehensive multi-credential support—fingerprint, mobile access, RFID, QR, and PIN—alongside built-in VoIP intercom capability in a single 7-inch touchscreen device.

    BioStation 3 Max delivers sub-0.2-second face matching, robust spoof detection, and support for multi-factor and Template on Mobile scenarios. With IP65 and IK06 ratings, Ethernet (10/100/1000 Mbps), RS-485, Wiegand, and PoE+ support (APB/OAPB models), it enables flexible deployment and seamless integration with existing access control systems.

Key Features

Supported Model List

• DESFire EV2/EV3 cards are backward compatible with DESFire EV1 cards, supporting CSN and smartcard features, including those of the DESFire EV1 card.

What's New About BioStation 3 Max?

1. NPU-Based AI Facial Authentication

    BioStation 3 Max is equipped with a dedicated NPU (Neural Processing Unit) that accelerates AI-based facial recognition directly on the device. This enables sub-0.2-second face matching with high accuracy and robust liveness detection, even in busy, high-traffic environments. Unlike general-purpose CPU-based solutions, the NPU ensures consistent performance without compromising speed or security under load.

2. Built-in VoIP Intercom

    BioStation 3 Max integrates a VoIP intercom function natively into the terminal, enabling two-way communication between visitors and reception staff without the need for a separate intercom device. This consolidates access control and visitor communication into a single unit, simplifying installation and reducing hardware costs.

3. Template on Mobile Support

    BioStation 3 Max supports Template on Mobile, a privacy-preserving authentication method where the user's biometric template is stored on their personal mobile device rather than on the terminal or server. This approach enhances data privacy compliance and reduces the risk of biometric data exposure in the event of a system breach.

FAQ

Q1. What is the difference between the DB, APB, ODB, and OAPB models?

A1. The four models differ in two key aspects: fingerprint support and PoE+ capability. The APB and OAPB models include a fingerprint sensor, support PoE+ (IEEE 802.3at), and also support iCLASS SE/SR/Seos and HID Prox cards in addition to the standard RF options. Please refer to the Supported Model List for details.

Q2. Does BioStation 3 Max support PoE+?

A2. PoE+ (IEEE 802.3at) is supported on the BS3M-APB and BS3M-OAPB models. It is not available on the BS3M-DB and BS3M-ODB models.

Q3. Does BioStation 3 Max support HID Prox or iClass cards?

A3. iCLASS SE/SR/Seos and HID Prox cards are supported on the BS3M-APB and BS3M-OAPB models. They are not supported on the BS3M-DB and BS3M-ODB models.

Q4. Can BioStation 3 Max be used as a standalone intercom device?

A4. BioStation 3 Max includes a built-in VoIP intercom function that enables real-time communication between the terminal and reception. However, it is designed to operate as an integrated access control terminal with intercom capability, not as a standalone intercom device.

Q5. Does QR code authentication require a separate license?

A5. Yes. QR code authentication on BioStation 3 Max requires a separate license. The device supports QR codes with up to 32 ASCII characters. Please contact your Suprema representative for licensing details.
