1. Document Information

1.1 Intended Audience

• Place Group Administrators — Register, edit, and delete vendor APIs; map credential types to APIs; propagate settings to child places
• Place Administrators — Review settings inherited from the place group and, if needed, apply per-place overrides

This manual assumes that the reader is an IT administrator familiar with HTTPS, HTTP status codes, Webhooks (HTTP POST), JSON, and JSONPath. Please coordinate the vendor API specification (URL, authentication headers, request/response JSON structure) with the vendor contact in advance.

1.2 Prerequisites

• You must be invited as an administrator to the target place group (or place) to access the menu.
• Obtain the vendor's authentication webhook URL (HTTPS required, receives HTTP POST) and any required authentication header values beforehand.

1.3 Key Terms

2. Customer API Integration Overview

2.1 Feature Description

Customer API Integration is an access method that forwards credential data detected by CLUe devices to an HTTPS API operated by the vendor, and determines access granted/denied based on the response. This allows vendor-specific policies — such as access rights, attendance, and visitor management — to be directly reflected in CLUe access control.

• Different vendor APIs can be linked to each credential type (face, fingerprint, RF card, PIN, QR).
• You can verify integration behavior with a test call before saving the registration.
• CLUe only identifies and forwards the credential — the actual grant/deny decision is determined by the vendor API's response.

2.2 Supported Credentials

• Face
• Fingerprint
• RF Card
• User PIN
• CLUe QR
• Custom QR

2.3 Place Group and Place Responsibilities

Propagation Rules.

• Saved at Place Group level → The same settings are immediately applied to all child places under that place group. Any per-place overrides are overwritten with the place group values.
• Saved at Place level → Applied to that place only. Other places and the parent place group are not affected.

3. Key Workflows

Customer API Integration consists of two main workflows: the configuration workflow (performed by administrators first) and the access event workflow (when users actually attempt access).

3.1 Configuration Workflow

These are the steps performed by the administrator. Each step is explained in detail from Section 4 onward.

[1] Select access method: "Vendor" or "Mixed / Advanced"     (Place Group)
     |    When selected, the "Customer API Integration" menu item is activated
     |    in the left navigation panel
     |
[2] Register an API in Customer API Integration               (Place Group)
     |    Basic Info → Custom Headers → Auto Fields → Manual Fields
     |      → Execute Test → Configure Judgment Criteria → Save
     |
[3] Link the registered API to each credential                (Place Group)
     |    On save, the same settings are automatically applied
     |    to all child places
     |
[4] (Optional) Per-place override settings                    (Place)
          Applied to that place only. Default uses
          the place group settings as-is

3.2 Access Event Workflow

After configuration is complete, this is the processing sequence when a user actually attempts access.

[1] User presents a credential at the device
        (Face / Fingerprint / RF Card / PIN / CLUe QR / Custom QR)
                |
                ↓
[2] Device → sends verification request to CLUe server
                |
                ↓
[3] CLUe server → sends verification request to vendor server
        (with registered Webhook URL, custom headers, auto fields,
         and manual fields)
                |
                ↓
[4] CLUe server determines access based on vendor response
        (grant/deny decision based on configured judgment criteria)
                |
                ↓
[5] Result returned to device
        (if the response includes a message, it is displayed
         on the device screen)

4. Step 1 — Select Access Method

Navigate to Service → Setting of access service on the place group screen.

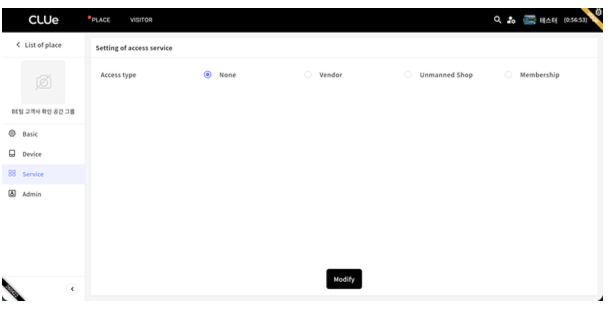

4.1 Initial State

• The Access type is set to None. No settings are enabled in this state.

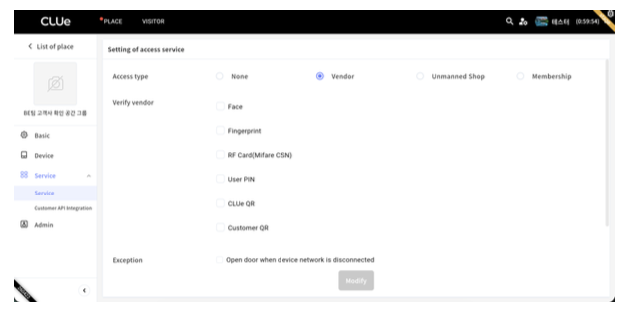

4.2 Selecting Vendor

• When you select Vendor under Access type, a Verify vendor section appears at the bottom of the screen.
• The Verify vendor section lists all 6 supported credentials. You will link a registered vendor API to each credential later.
• At this point, the Customer API Integration menu item becomes active in the left navigation panel.

The Customer API Integration menu is activated when Access type is set to either Vendor or Mixed / Advanced.

You do not need to save at this step. First, proceed to Step 2 to register the API you will link.

5. Step 2 — Register a Vendor API

Navigate to Service → Customer API Integration in the left navigation panel.

Registration limit. Up to 3 APIs can be registered per credential type. That is, across 6 types (Face, Fingerprint, RF Card, User PIN, CLUe QR, Custom QR), the place group can hold up to 18 APIs total. No additional APIs can be registered for a credential type that already has 3. The API actually used for each credential is selected in Step 3 (Section 6).

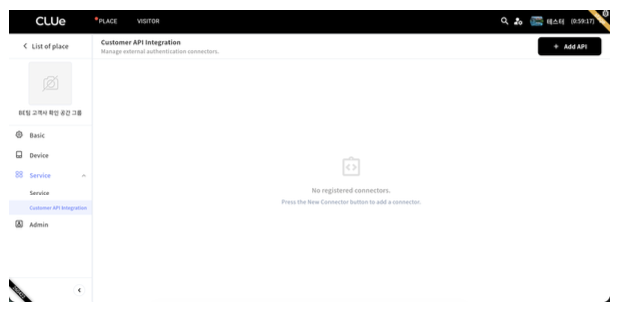

5.1 API List (Empty State)

• If no APIs have been registered yet, a guidance message is displayed in the center.
• Click the + Add API button in the upper right to open the configuration panel.

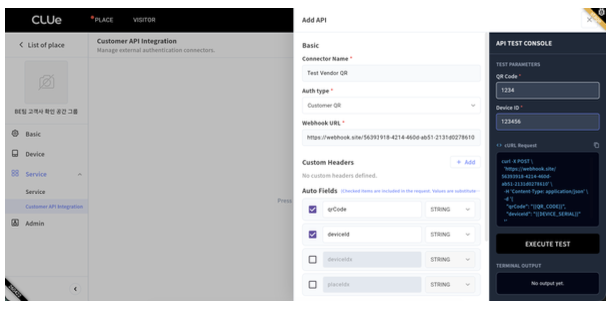

5.2 Enter Basic Information

The configuration panel opens on the right side of the screen, with the Basic Information section at the top.

Auth type cannot be changed once set. To use a different credential type, register a new API.

Request specification. CLUe sends only HTTP POST, Content-Type: application/json requests to the registered URL. The vendor API must be able to receive requests in this format; endpoints that only accept GET, PUT, or other methods cannot be used.

Response specification. The vendor API must include Content-Type: application/json in the response header and return the body in JSON format. Non-JSON responses such as HTML error pages, plain text, or XML cannot be parsed by CLUe, causing both tests and actual access verification to fail. Example response body:

{
  "valid": true,
  "message": "Access granted."
}

In this example, the judgment criteria's Success Result JSONPath can be set as $.valid = true, and the Success Message JSONPath as $.message. The actual key names and structure should match the vendor's API specification.

5.3 Add Custom Headers

Add custom headers here if the vendor API requires authentication/authorization headers (e.g., Authorization token, API key).

• Up to 10 custom headers can be added.
• Use the add button to insert rows and the trash icon to remove them.
• Leave this section empty if the vendor API is a public endpoint or requires no additional headers.

Fixed headers — not configurable. Content-Type and Accept cannot be added as custom headers. CLUe internally sends Content-Type: application/json and Accept: application/json as fixed values, so administrators do not need to specify them. Attempts to add headers with these names will not be saved. The vendor API should be designed with these two headers assumed.

5.4 Select Auto Fields

Auto fields are values that the system automatically populates in the request body. The available auto fields vary by credential type. Each field's value position is shown as a {{...}} placeholder, which is replaced with the actual device/user value at the time of the request.

Field Selection Rules

• Use the checkbox on the left of each auto field to determine whether to include it in the request.
• You do not need to select all of them. Only select the values that the vendor API actually requires for its decision. Reducing unnecessary data makes troubleshooting easier.
• The key (field name) can be modified to match the name required by the vendor API (e.g., userKey → employeeId). The placeholder in the value position is fixed by the system and cannot be changed.
• The data format (e.g., STRING) is displayed to the right of each field.

No placeholders other than the 5 listed above can be added. If the vendor API requires additional values, either add them as fixed values using manual fields (Section 5.5) or coordinate with the vendor to derive them from the device serial or user key on their end.

Count limit. Auto fields and manual fields combined can include up to 10 fields in the request body. The more auto fields you select, the fewer manual fields remain available.

5.5 Add Manual Fields

Add manual fields if the vendor API requires fixed values to be included in the request.

• Auto fields and manual fields combined can include up to 10 fields.
• Use the add button to insert rows and the trash icon to remove them.
• If no manual fields have been added, the message "No manual fields defined." is displayed.

5.6 Run API Test

After completing Sections 5.2–5.5 (basic information, custom headers, auto fields, and manual fields), run a test before configuring the judgment criteria. The actual response obtained from the test is needed for the judgment criteria configuration in Section 5.7.

Use the API Test Console on the right side of the panel.

Test Parameters

The input fields displayed in the test console vary by credential type. Device ID (device serial) is required for all types; the remaining input corresponds to the value used by that credential type, entered exactly as the vendor manages it.

The values entered in the test console replace the auto field placeholders and are sent as the actual request body. During testing, enter values that actually exist in the vendor's database to verify both grant and deny responses. In production, the values detected by the device are substituted automatically.

How to Run

1. Click EXECUTE TEST at the bottom of the console.
2. A progress indicator appears during execution. When the result is received, the request/response content (terminal output) is displayed in the console area.
3. If you close the panel or navigate to a previous step during execution, the test is aborted.

After a successful response is received, proceed to the next step to configure the judgment criteria based on the response content. If no response is received due to URL, header, or field configuration issues, review those inputs and run the test again.

Required before saving. The Save Configuration button in Section 5.8 is only enabled after at least one successful test. "Successful" here means that any HTTP response was received from the vendor server (including 4xx and 5xx). If no response was received due to a network error, saving is not possible.

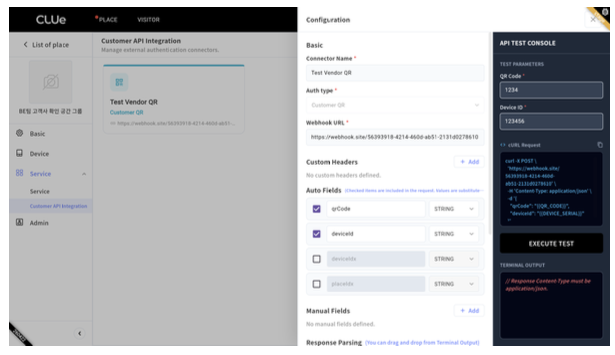

Test Failure Example — Response Body Is Not JSON

Even if the vendor server returns a response, if the body is not in JSON format or the response header Content-Type is not application/json, a failure log with an error is displayed in the test console, and Save Configuration will not be enabled. As described in the response specification in Section 5.2, verify with the vendor contact that the API meets both of the following conditions:

• The response header includes Content-Type: application/json
• The response body is valid JSON (not an HTML error page, plain text, XML, etc.)

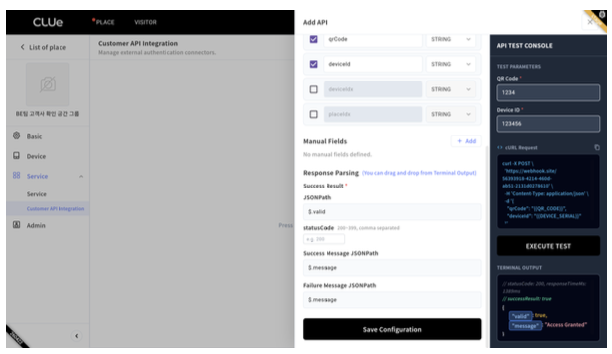

5.7 Configure Response Parsing

Based on the response received in Section 5.6, this step defines which responses should be interpreted as access granted (success). Responses matching the configured criteria result in access granted; all others result in access denied.

The judgment mode is automatically determined by which fields you fill in. At least one of statusCode or Success Result JSONPath must be entered; leaving both empty prevents saving.

statusCode (used in Modes 1 and 3)

• Only integers in the 100–399 range can be specified. 4xx and 5xx codes cannot be designated as success.
• Up to 3 values can be selected; duplicate values are not allowed.
• If multiple values are specified, a match with any one of them is treated as success (e.g., 200, 201).

Success Result JSONPath (used in Modes 2 and 3)

• Enter the Key, Value, and data format (BOOLEAN, STRING, NUMBER) to identify a successful response.
• Only 1 success key condition can be set.
• Responses that do not match this condition are treated as access denied.

Success Message JSONPath / Failure Message JSONPath (Optional)

• Specify the key from which to extract the string to display on the device screen for successful and failed authentication respectively (commonly message is used).
• Saving is possible without specifying these. If left empty, only the grant/deny decision is made and no message is displayed on the device screen.
• You can set different keys for success and failure scenarios.
• The value of the specified key must be a string, and should not be too long to fit the device screen.

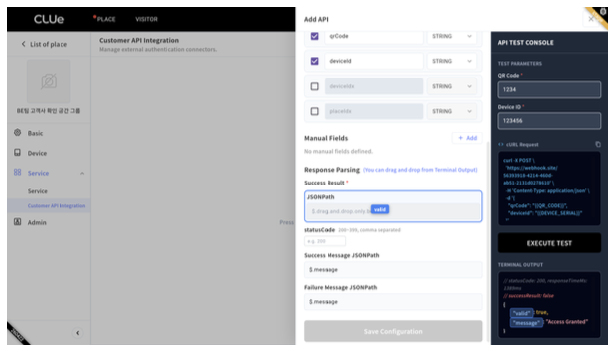

Tip — If JSONPath entry is difficult. You can drag a field from the response area in Section 5.6 and drop it onto the Success Result JSONPath, Success Message JSONPath, or Failure Message JSONPath input fields to auto-populate the JSON path. There is no need to write JSONPath manually.

5.8 Save

The Save Configuration button at the bottom of the panel is enabled only when all required fields and judgment criteria are correctly filled in and the API test in Section 5.6 has succeeded at least once. The same Save Configuration button is used for both new registrations and edits.

• The button remains disabled if there are missing required fields, URL format errors, manual field values that cannot be converted to the specified type, missing judgment criteria, or no successful test (including network errors).
• Click Save Configuration to complete the registration.

After saving, the panel closes and the newly registered API appears as a card in the list. The card displays the name, credential type, registered URL, and other details.

• Click a card → The edit panel opens. You can modify the Name, Webhook URL, auto/manual fields, and judgment criteria. Auth type is locked and cannot be changed.
• Trash icon → Deletes the registration. If this API was linked to any credential, that link is automatically removed and the change is immediately propagated to devices. The unlinked credential will then operate using device-local authentication without vendor verification. If you are concerned about an operational gap, register and link a replacement API before deleting.

6. Step 3 — Assign API to Each Credential

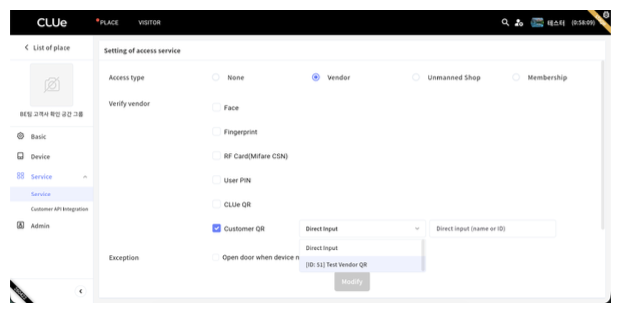

Return to the Service → Setting of access service screen. In the Verify vendor section, assign the API to use for each credential.

• Open the dropdown next to each credential to see the list of registered APIs (only APIs registered with a matching Auth type are shown).
• For each credential — Fingerprint, Face, RF Card, User PIN, CLUe QR, Custom QR — select the desired API. You may assign different APIs to different credentials.
• Credentials without an assigned API operate using device-local authentication only. No verification request is sent to the vendor API for those credentials. Leave a credential unassigned only if you have determined that vendor verification is not needed for it.

6.1 Save and Propagation Rules

When you click Modify, a confirmation dialog appears asking whether to apply the changes to child places.

• OK → The same settings are immediately applied to all child places under this place group. Any per-place overrides are overwritten with the place group values.
• Cancel → The changes are not saved.

In most cases, place group–level settings are sufficient to operate all child places with the same behavior. If a specific place needs a different API, use Step 4 (next section) to override settings for that place only.

7. Step 4 — Per-Place Override Settings (Optional)

Use this step when you want to assign a different API to a specific place that differs from the settings inherited from the place group. Changes made here are applied to that place only and do not affect other places or the parent place group.

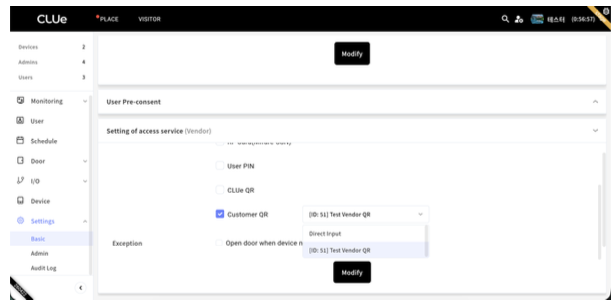

7.1 Place-Level Setting of Access Service

• Navigate to Settings → Basic → Setting of access service for the place.
• The Verify vendor section shows the APIs assigned by the parent place group as the default values.
• In the dropdown for each credential, you can select a different API to use for this place only.
• Click Modify to save the changes to this place only. Changes are not propagated to other places.
• Place administrators can only access this screen if they have been invited as an administrator to the place.

Overwrite warning. If the parent place group subsequently changes and saves credential-to-API assignments, the propagation will overwrite per-place overrides with the place group values. If you need to maintain per-place settings after a place group change, reassign them on this screen after the place group update.

8. Input Rules Summary

9. Troubleshooting

9.1 Access Issues (Step-by-Step Diagnosis)

Use the step numbers from Section 3's Access Event Workflow to narrow down the problem area.

9.2 Save Configuration Button Is Disabled

If the Save Configuration button is not clickable, check the following items in order:

• Required fields — Are any of Name, Auth type, or Webhook URL empty?
• Webhook URL — Does it start with https://? Does it exceed the max length (512 characters)?
• Manual fields — Can the values be converted to the specified type (STRING / NUMBER / BOOLEAN)? (e.g., non-numeric characters entered for NUMBER)
• Judgment criteria — Is at least one of statusCode or Success Result JSONPath entered? If Success Result JSONPath is used, are Key, Value, and data format all filled in? (Success/Failure Message JSONPath is optional and does not affect saving)
• API test — Has at least one test succeeded? Saving is not possible without a successful test.

9.3 Test Failures

Test failures fall into three categories: (A) blocked at input validation, (B) request was sent but no response from the vendor server, and (C) response received but not the expected result.

(A) Blocked at Input Validation — The request is not sent because input values do not meet the rules.

(B) Request Sent but Test Shows Failure — The test result shows success = false, and saving is not possible in this state.

(C) Response Received but Not the Expected Result — success = true is shown along with the actual HTTP status code in statusCode and the vendor's raw response in responseBody. Saving is possible; this is the stage to adjust judgment criteria based on the response.

The test API displays the response body as-is without parsing, so use the actual response JSON shown in the console to match your JSONPath, key, and value settings.

When narrowing down failure causes on the device side, also refer to Section 9.1 Step-by-Step Diagnosis.

9.4 Cannot Save with Duplicate Names

Auto field and manual field key names cannot be duplicated with each other. Request header keys also cannot be duplicated with each other. If you renamed an auto field key, verify it does not conflict with any manual field.

9.5 No Message Displayed on Device Screen

• Verify that the response body actually contains the field specified by Success Message JSONPath or Failure Message JSONPath
• Verify that the key's value is a string (numbers, objects, and arrays are not displayed)
• Verify that the Success Message JSONPath / Failure Message JSONPath names in the settings exactly match the keys in the actual response
