Affected Version: BioStar 2 v2.9.9 or later
Overview
From BioStar 2 v2.9.9, BioStar 2 supports the "Microsoft ODBC Driver 17 to connect with SQL" to communicate with MS SQL that uses Windows authentication.
- To know how you can set the Windows authentication for MS SQL, please refer to the following article. [BioStar 2] Supports Windows Authentication for MS SQL Database Server Connections
Important Notes
So, in the situation that you installed MS SQL with Windows authentication, but if you didn't install the "Microsoft ODBC Driver 17 for SQL Server" together, when you try to install BioStar 2 with MS SQL, you will encounter the specific warning pop-up in the BioStar 2 installation pop-up.
BioStar 2 v2.9.9 or higher supports only version "17" of the Microsoft ODBC Driver, such as 17.10.6 or 17.10.4.1.
To check the detailed scenarios, please refer to the following content.
How To Check
- You can check if the "Microsoft ODBC Driver 17 for SQL Server" has been installed or not by going to Settings > Apps & features in the Windows of your PC, where you will install the BioStar 2 server.
How To Install
- If "Microsoft ODBC Driver 17 for SQL Server" has not been installed yet, you can download and install it by accessing the following link. Release Notes for ODBC Driver for SQL Server on Windows - ODBC Driver for SQL Server | Microsoft Learn
Installation Scenarios
Case 1. Normal Installation

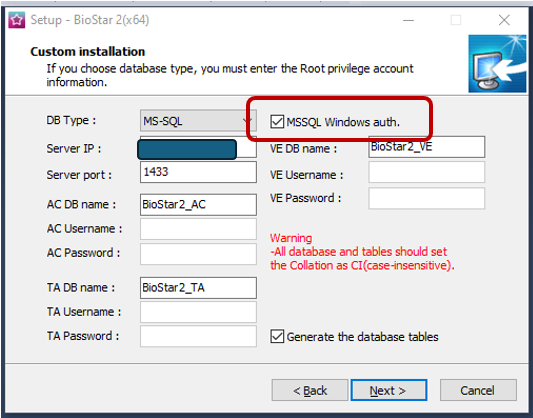

If the "Microsoft ODBC Driver 17 for SQL Server" has been installed in advance, there is no separate warning pop-up even if you select the option "MSSQL Windows auth" in the BioStar 2 installation pop-up. So, you can install BioStar 2 without problem.

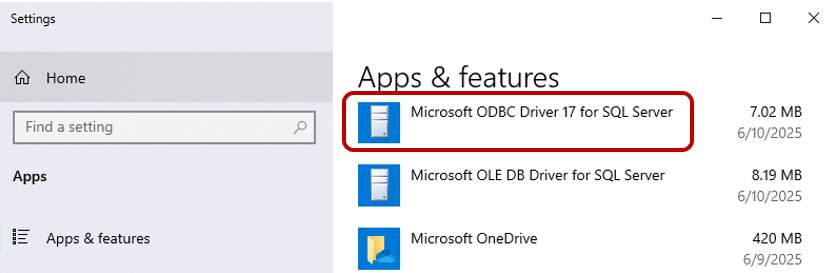

You can check if the "Microsoft ODBC Driver 17 for SQL Server" has been installed or not by going to Settings > Apps & features in the Windows of your PC, where you will install the BioStar 2 server.
Case 2. Installation Warning
Two situations may trigger a warning during installation:
1. Driver Not Installed:

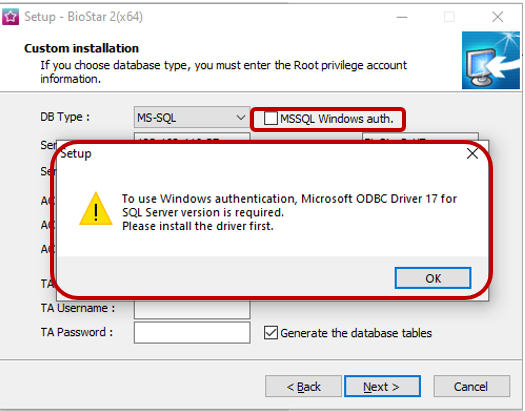

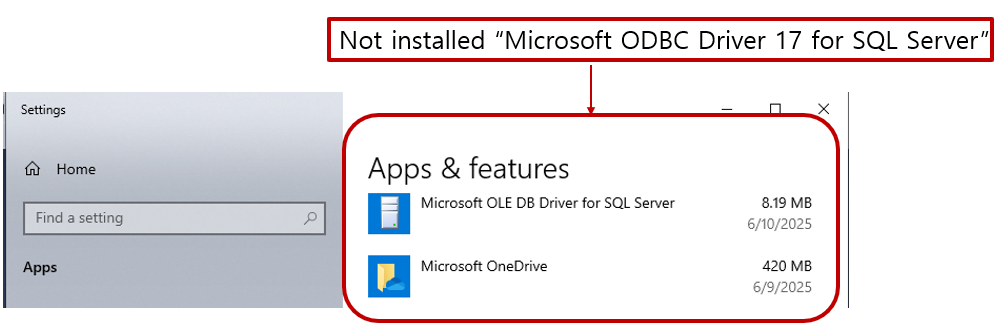

If the Microsoft ODBC Driver 17 for SQL Server has not been installed in advance, you will see the following warning pop-up when checking the box for "MSSQL Windows auth" in the BioStar 2 installation pop-up.
- A warning pop-up appears in the BioStar 2 installation pop-up
- Not installed"Microsoft ODBC Driver 17 for SQL Server"
2. Incorrect Version Installed:

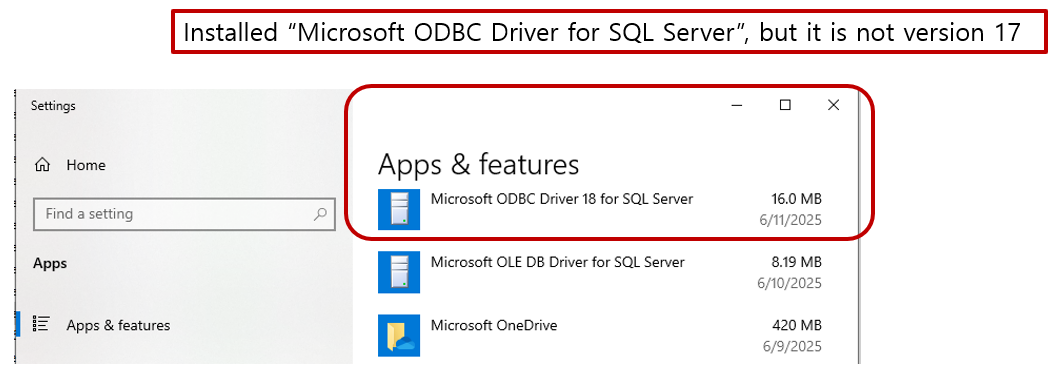

If the Microsoft ODBC Driver for SQL Server has been installed in advance but is not version 17, you will see the following warning pop-up when checking the box for "MSSQL Windows auth" in the BioStar 2 installation pop-up.
- A warning pop-up appears in the BioStar 2 installation pop-up
- Installed"Microsoft ODBC Driver for SQL Server", but it is not version 17
Summary
Before installing BioStar 2:
Confirm that the Microsoft ODBC Driver 17 for SQL Server is installed on your server.
If not, download and install the correct version from Microsoft.
